Tron2真机部署#

在Tron2真机上，通过FluxVLA进行模型推理部署。本文档说明如何在Tron2真实机器人上进行FluxVLA的部署与推理。

Tron2 Infra#

场景配置与建议#

场景参考：

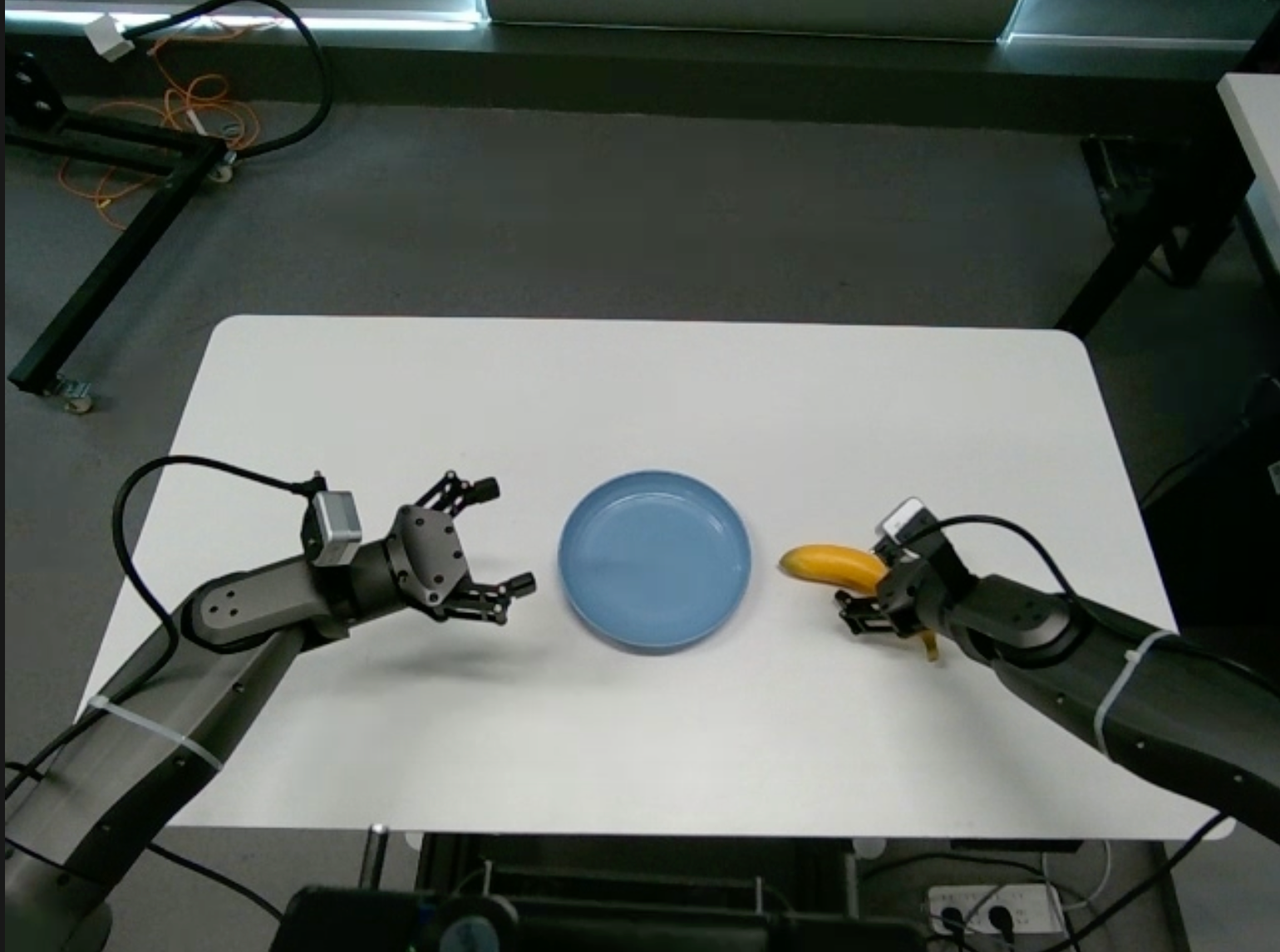

scene

头部相机角度#

  • 将头部相机角度向下

mrostopic pub /move_cmd std_msgs/Float32MultiArray '{"layout":{"dim":[],"data_offset":0},"data":[2,3,1.0567,-0.0139998]}'

桌子高度与角度#

  • 支架与桌子相隔距离一瓶半矿泉水，桌子边缘应与机器人支架形成垂线

  • 桌子高度为75cm

硬件准备#

支架固定#

  • 将四个旋钮拧紧，使其撑住地面

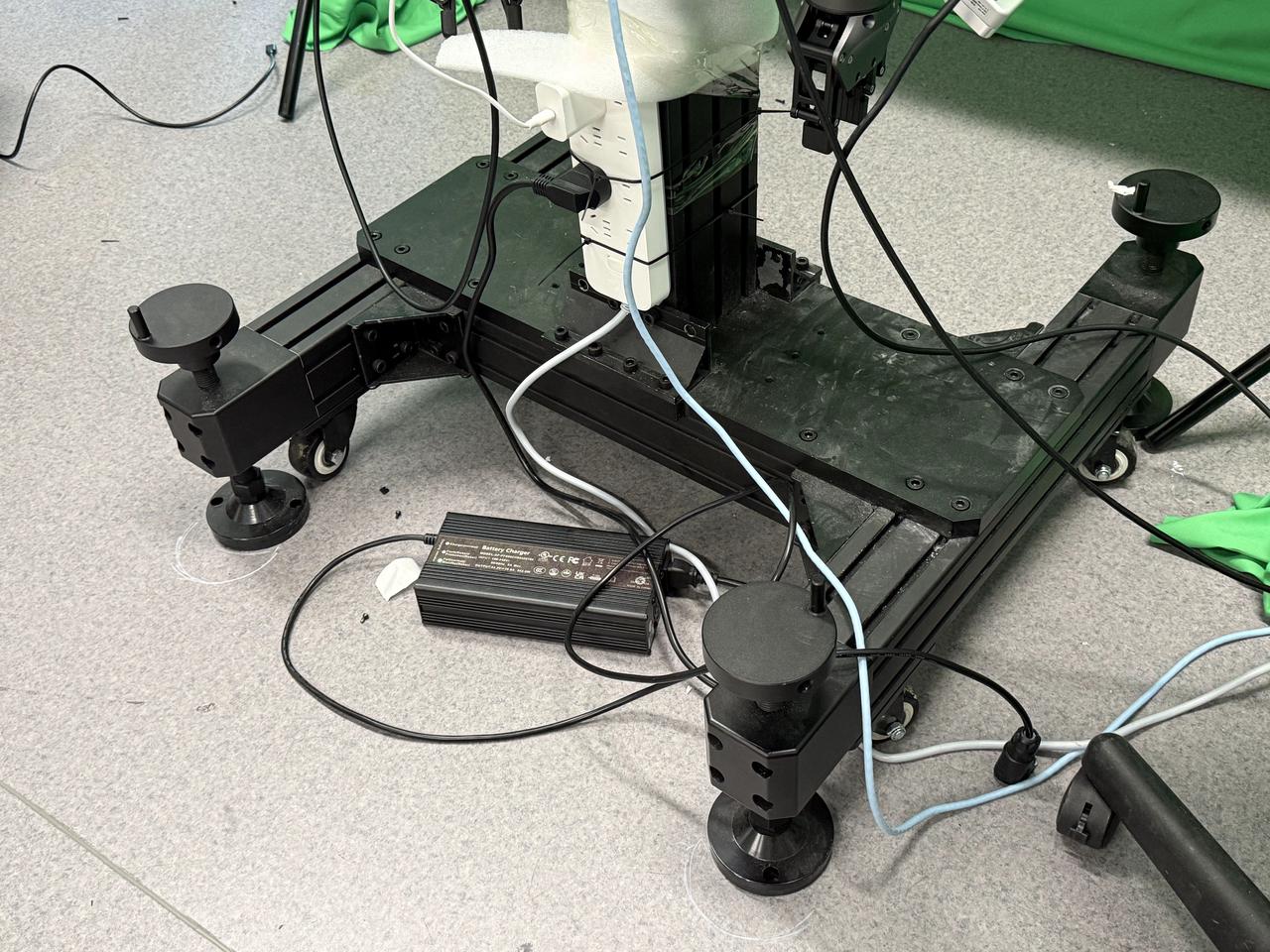

hold on

排线#

  • 网线连接上网口，IP ：{TRON2_IP}

  • 三相机均通过10Gb/s拓展坞连接在本地主机

物理环境#

推理环境要求#

  • 按照官方教程安装ROS1

  • 前文配置的Conda环境

  • 按照TRON2官方SDK开发教程TRON 2 SDK 开发指南安装运动控制开发库

git clone https://github.com/limxdynamics/limxsdk-lowlevel.git
pip install limxsdk-lowlevel/python3/amd64/limxsdk-*-py3-none-any.whl

  • 安装realsense SDK和realsense-ros 包

    • https://github.com/IntelRealSense/librealsense/blob/master/doc/distribution_linux.md

    • https://github.com/rjwb1/realsense-ros

  • 安装其他依赖

pip install websocket-client
sudo apt install net-tools

相机节点#

  • 将三个相机连在本地主机上(非机器人板卡),直接运行. 会自动检查序列号.

Publishers:(主要用到)

  • camer0/color/image_raw

  • camer1/color/image_raw

  • camer2/color/image_raw

代码：

python tron2_infra/

#!/bin/bash

#source /opt/ros/noetic/setup.bash
# source {ROS_WORKSPACE}/devel/setup.bash
# export ROS_IP={TRON2_ROS_IP}

# Function to detect connected RealSense cameras
detect_cameras() {
    # List all connected RealSense cameras, excluding Asic Serial Number
    serial_numbers=($(rs-enumerate-devices | grep "Serial Number" | grep -v "Asic" | awk '{print $NF}'))
    echo "${serial_numbers[@]}"
}

# Loop to check for the launch flag file and connected cameras
while true; do
    serial_numbers=($(detect_cameras))

    # Check if any cameras were found
    if [ ${#serial_numbers[@]} -gt 0 ]; then
        echo "Detected ${#serial_numbers[@]} cameras."
        break  # Exit the loop if cameras are detected
    else
        echo "No RealSense cameras detected. Retrying in 5 seconds..."
        sleep 5  # Wait for a while before retrying
    fi
done

# Automatically start a ROS node for each detected camera
if [ ${#serial_numbers[@]} -gt 0 ]; then
    for i in "${!serial_numbers[@]}"; do
        serial=${serial_numbers[$i]}
        echo "Starting ROS node for camera $serial..."
#        roslaunch realsense2_camera rs_camera.launch serial_no:=$serial camera:=camera$i enable_pointcloud:=True enable_accel:=True enable_gyro:=True enable_sync:=True unite_imu_method:=linear_interpolation &
        roslaunch realsense2_camera rs_camera.launch serial_no:=$serial camera:=camera$i align_depth:=True color_width:=640 color_height:=480 color_fps:=30 &
        sleep 10  # Optional: wait a bit before starting the next camera
    done

    # Wait for all background processes to finish
    wait
else
    echo "No cameras to start."
fi

Tips: 这里的相机序列号由你插入的相机usb顺序决定,因此相机话题的命名可能与相机流不是每次都对应.所以每次启动相机节点后要用rqt_image_view进行察看. 后续有问题请联系公司产品和软件组.

状态节点#

  • 创建状态节点,实时订阅机器人状态.

Publishers:

  • /joint_states/left_arm

  • /joint_states/right_arm

  • /joint_states/head

python tron2_infra/tron2_state_rostopic.py

控制节点#

  • 提供servoJ / moveJ接口,可以进行连续控制或单点位置控制

  • 指定robot accid, 保证机器人型号与指定accid对应

python tron2_infra/tron2_control_rostopic.py

头部控制#

将Tron2的头部云台向下：

ssh {USER}@{TRON2_IP}

进入后输入：

mrostopic pub /move_cmd std_msgs/Float32MultiArray '{"layout":{"dim":[],"data_offset":0},"data":[2,3,1.0567,-0.0139998]}'

硬件环境异常处理#

  • 当相机节点终端出现 “the frames didn’t arrive in 5 secondes”, 将三个相机的USB口进行重新插拔

  • 每次相机节点重启时, 状态与控制节点也重启, 以防通讯失联

在一次相机节点正常启动后, 可进行持续推理. 不会断联.

FluxVLA 推理#

环境准备#

  • Cuda 12.4 :

    • 出处: https://developer.nvidia.com/cuda-12-4-0-download-archive

    • 选择 runfile 进行下载

[图片]

wget https://developer.download.nvidia.com/compute/cuda/12.4.0/local_installers/cuda_12.4.0_550.54.14_linux.run
sudo sh cuda_12.4.0_550.54.14_linux.run

  • LimVLA环境配置

  • Install pytorch：

pip install torch==2.6.0 torchvision==0.21.0 torchaudio==2.6.0 --index-url https://download.pytorch.org/whl/cu124

  • Install LIBERO：

git clone https://github.com/Lifelong-Robot-Learning/LIBERO
cd LIBERO
pip install -r requirements.txt
pip install -e .

Due to PyTorch version changes, LIBERO may require some accommodations; in particular, the way we use torch.load might need to be updated.

  • Install transformers：

pip install transformers==4.53.2

  • Install flash-attention

git clone https://github.com/Dao-AILab/flash-attention.git
cd flash-attention
git checkout v2.5.5
MAX_JOBS=4 python setup.py install

  • Install dlimp

git clone https://github.com/kvablack/dlimp
cd dlimp
pip install -e .

  • Install limvla

pip install -r requirements.txt
python -m pip install -e . --no-build-isolation

这样能保证limvla包相关修改能实时更新，不需要反复install

Tron2 启动#

  • 先将机器人转为idle模式,再转为developer模式

  • 打开相机节点、状态节点与控制节点

  • 准备进行推理

launch.json#

  • 将下述内容复制入 launch.json, 方便用python debugger进行调试

{
    "name": "Inference Pi05",
    "type": "debugpy",
    "request": "launch",
    "program": "{CONDA_ENV_PATH}/bin/torchrun",
    "python": "{CONDA_ENV_PATH}/bin/python",
    "args": [
        "scripts/inference_real_robot.py",
        "--config", "{PROJECT_PATH}/configs/pi05/pi05_paligemma_tron2_pick_bananas_full_finetune.py",
        "--ckpt-path", "{CHECKPOINT_PATH}/checkpoints/step-001000-epoch-00-loss=0.0072.pt",
    ],
    "console": "integratedTerminal",
    "justMyCode": false,
    "env": {
        "CUDA_VISIBLE_DEVICES": "0",
        "HF_ENDPOINT": "https://hf-mirror.com",
        "WANDB_MODE": "disabled",
    }
}

使用说明#

  • 按 “0” 进行复位, 按 “1”进行对应 prompt 推理. 也支持多prompt输入.

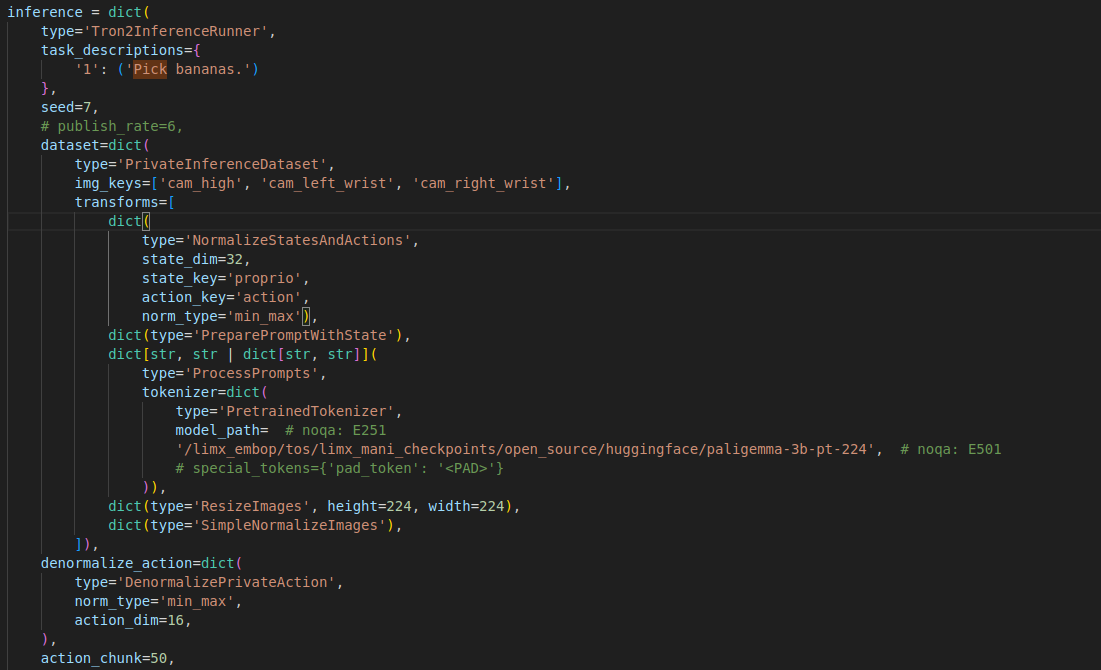

prompt

在config中, inference/task_descriptions进行指定.

  • 目前都是走moveJ控制, 运行时间 1~4秒.（可在状态节点中指定）

  • publish_rate在inference/publish_rate中指定, 刚开始可以调低点,方便看清楚轨迹.

流程：#

  1. 将桌子往前推，先进行手臂复位（到桌子水平面上）

  2. 再进行启动模型推理，在过程中可以去调整状态节点中的moveJ time，改变控制频率

  3. 推理结束后，撤出桌子，在用手柄进入idle模式
